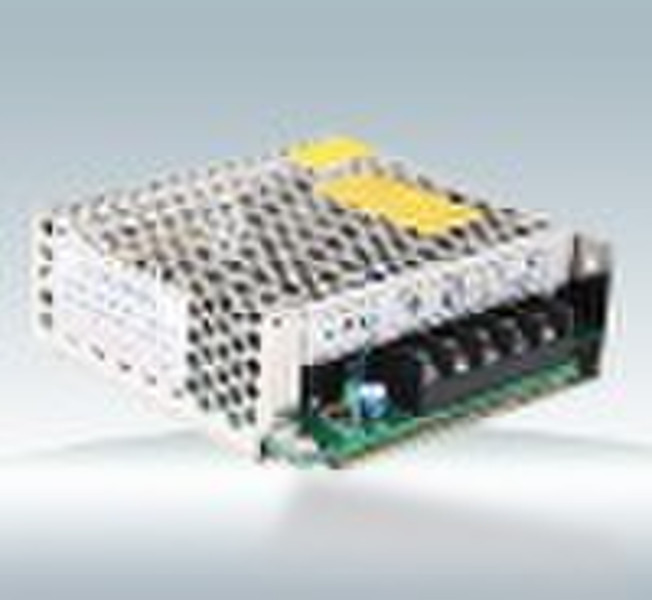

S series Switching Power Supply

ModelS-150-5S-150-7.5S-150-9S-150-12S-150-15S-150-24S-150-27S-150-48SpecificationDC output voltage5V7.5V9V12V15V24V27V48VOutput voltage range±2%±1%±1%±1%±1%±1%±1%±1%Rated output current30A20A16.7A12.5A10A6.5A5.6A3.2AOutput current ranqe0-30A0-20A0-16.7A0-12.5A0-10A0-6.5A0-5.6A0-3.2AWave and noise150mVp-p150mVp-p120mVp-p100mVp-p100mVp-p100mVp-p100mVp-p50mVp-pInlet stability±0.5%±0.5%±0.3%±0.3%±0.3%±0.2%±0.2%±0.2%Load stability±0.5%0.50%±0.3%±0.3%±0.3%±0.3%±0.2%±0.2%DC output power150W150W105.3W150W150W156W151.2W153.6WEfficiency80%80%80%82%84%85%86%87%Adjustable range for DC voltage4.5 5.5V6 8.3V8 10.4V10.6 13.2V13.5 16.5V21 28V24 30V43 53VAC input voltage range85 132VAC/176 264VAC selected bv switch 47 63Hz,248 370VDCInput current3.2A/115V 1.6A/230VAC Inrush currentCold-start current 35ALeakage current<0.5mA/240VACOverload proctection105%-150% Tvee:oulsina hiccup shutdown Reset: auto recovervOver-voltage protection115%-135%High-temperature protectionTemperature coefficient±0.03%/°C(0 50°C)Setup, rise, hold up time100ms,50ms,20msVibration10 500Hz, 2G 10min,/1 cycle. Pariod for 60min,Each axesWithstand voltageInput and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvAIsolation resistanceinput and output internah’lnput and enclosure,Output and enclosure:500VDC/100MΩWorking temperature and humidi-10°C +60°C,20% 90%RHStore temperature and humidity-20°C +85°C,10% 95%RHOverall dimension199X110X50mmWeight0.8kgSSafety standardsUL1950,TUVEN6050 ApprovedEMC standardsCISPR22(EN55022),IEC1000-4-2,3,4,IEC1000-3-2Verification
